Alber E-Motion

Alber E-Motion

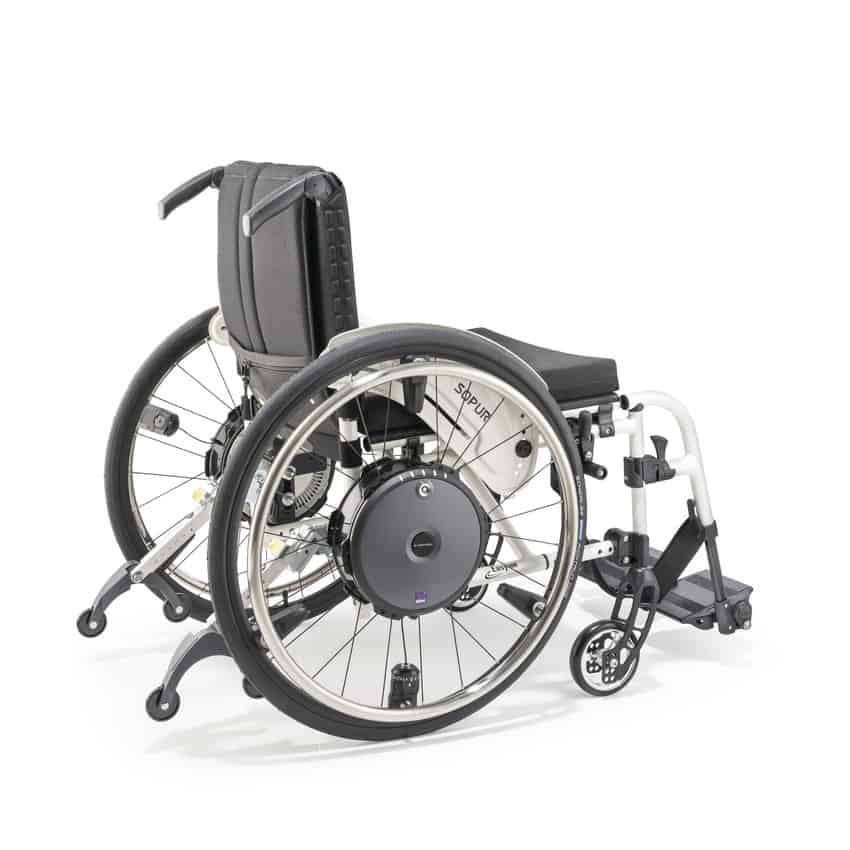

e-motion combines active mobility with therapeutic benefits. Sensors on the push rim measure the drive movement while in motion and the electric motors integrated in the wheel hubs provide the corresponding power assistance. This provides targeted relief for muscles and joints and very little strength is required to move independently with the wheelchair, especially on slopes or downward slopes. The driving behavior of the e-motion can be individually adapted to the needs of any wheelchair user in just a few easy steps.

Key product advantages at a glance

  • Fits practically all commercially available wheelchair models

  • Silent, highly efficient motor technology with 40 Nm torque per wheel

  • Power assistance up to 8.5 km/h*

  • The standard version is one of the lightest add-on drives with only 7.8 kg per wheel incl. batteries

  • High range up to 25 km

  • Long battery service life thanks to the latest lithium ion technology

  • Individually adjustable sensitivity of the sensors on the push rims

  • Individual adjustment of the driving parameters via smartphone app**

  • Alternative selection from four pre-defined driving profiles via a free smartphone app

  • Two assistance levels per driving profile

  • Additional learning mode for beginners

  • Rollback delay allows the safe handling of slopes and ramps

  • Clever additional functions per smartphone app, such as Cruise Mode* (Maintains a permanent speed even on slopes or downward slopes)

e-motion combines active mobility with therapeutic benefits. Sensors on the push rim measure the drive movement while in motion and the electric motors integrated in the wheel hubs provide the corresponding power assistance. This provides targeted relief for muscles and joints and very little strength is required to move independently with the wheelchair, especially on slopes or downward slopes. The driving behavior of the e-motion can be individually adapted to the needs of any wheelchair user in just a few easy steps.

Key product advantages at a glance

  • Fits practically all commercially available wheelchair models

  • Silent, highly efficient motor technology with 40 Nm torque per wheel

  • Power assistance up to 8.5 km/h*

  • The standard version is one of the lightest add-on drives with only 7.8 kg per wheel incl. batteries

  • High range up to 25 km

  • Long battery service life thanks to the latest lithium ion technology

  • Individually adjustable sensitivity of the sensors on the push rims

  • Individual adjustment of the driving parameters via smartphone app**

  • Alternative selection from four pre-defined driving profiles via a free smartphone app

  • Two assistance levels per driving profile

  • Additional learning mode for beginners

  • Rollback delay allows the safe handling of slopes and ramps

  • Clever additional functions per smartphone app, such as Cruise Mode* (Maintains a permanent speed even on slopes or downward slopes)

Low weight
Low weight

- Only 7.8 kg per wheel in the standard version

- One of the lightest active drives available

- Weight reduction of 33% compared to the previous model

More performance
More performance

- Highly efficient motor technology

- 40 Nm torque (30% more compared to the previous model)

- Up to 8.5 km/h max. assisted speed*

- Up to 25 km range thanks to the latest lithium-ion technology

Individually adaptable
Individually adaptable

- Fast and intuitive programming of the driving parameters via smartphone app

- Four predefined driving profiles

- Easy adjustment of the sensor sensitivity for the left and right drive wheel

Useful drive functions
Useful drive functions

- Cruise mode: Maintains speed with only one push on the rim; also works on slopes and downward slopes

- Rollback delay: Keeps the wheelchair in position on slopes and makes it easier to reposition the hands - Two assistance levels for indoors and outdoors

Wide range of accessories and options
Wide range of accessories and options

- Four different push rim versions

- Four different tyre types

- Compact ECS remote control with battery display and two assistance levels

- Spoke cover, holder for ECS remote control and much more.

Drive wheel M25

Size

22", 24" and 26"

Speed

Support 0– 6 km/h (up to 8.5 km/h with Mobility Plus Package)

Torque

2 x 40 Nm

Motor power rating

2 x 80 W

Operating voltage

36,5 V

Operating temperature

-25 to +50 °C

Protection class

IPX4

Climbing and braking ability

Please observe the limit values of the wheelchair manufacturer

Battery pack

Battery cells

Lithium-ion battery, rechargeable, leak proof and maintenance-free

Nominal battery capacity

2 x 4,3 Ah

Nominal battery power

2 x 156,95 Wh = 313,9 Wh

Charging temperature

from 0° C to 40° C

Range

25 km

The range will vary according to the terrain as well as the prevailing running conditions. The stated range can be achieved with optimal running conditions (even terrain, freshly charged batteries, ambient temperature of 20 °C, optimal tyre pressure, steady driving, etc.).

Transportation by air

All Alber products are suitable for transportation by air. At www.alber.de you will find all the current certificates for presenting to the airline

Charger

Input voltage

100–240 V (AC), 50–60 Hz; automatic adaptation to the mains voltage, electronic charging and switch-off mechanism

Output voltage

2 x 48 V (DC)

Charging current

2 x 1A

Charging time

approx. 6 hours

Protection class

IP31

Weight

1,2 kg

Weight

Total weight per wheel

7.8 kg each incl. battery pack (standard version) Max. permissible user weight 150 kg Permissible total weight 190 kg (person, drive unit, wheelchair)
